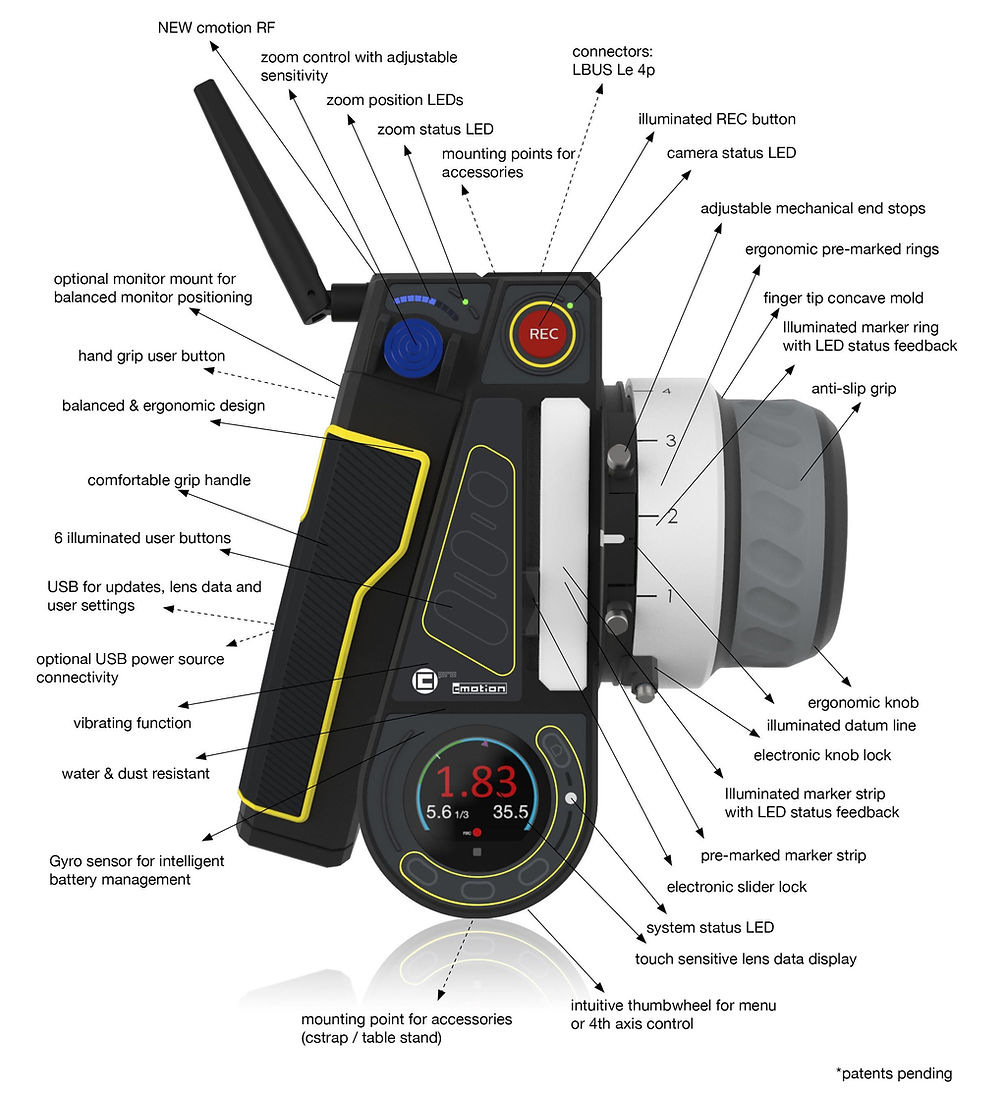

The cPRO hand unit is designed to be a feature packed work horse which offers ultimate control in a compact and balanced shape. The unit stands out with its balanced and ergonomic design paired with innovative control features.

The innovative thumb wheel positioned beneath the touch display provides quick and easy access to the system's extensive menu settings even while wearing gloves. In addition to this, the thumb wheel can be assigned as a fully functional 4th axis controller.

The newly designed focus knob with a concave fingertip moulding, mechanical hard stops and anti-slip grip has been developed to meet the needs of the most demanding focus puller.

Super fast boot up time enables changing batteries almost on the flight.

The illuminated marker ring, marker strip, user buttons and a zoom position LED display ensures cPRO provides clear information and feedback in any shooting environment.

Additional add-ons including a cstrap mount (for cmotion’s neck /shoulder strap), a rosette adapter compatible to most of cmotion´s fastening tools and an innovative monitor mount for balanced mounting and positioning of your monitor completes the set-up.

Mechanically, the cPRO motor is based on the incredibly popular cforce mini. However, this motor benefits from a built-in RF mo¬dule. Incorporating the wireless module into the motor eliminates the need for an extra unit being mounted on the camera. This combination reduces both the weight and costs of a ready to use system. 2 user buttons provide a simple interface for setting the motor scale, triggering motor calibration and selecting one of the 8 RF channels to pair with the new cPRO hand unit. Using the LBUS interface, the system can be expanded with up to 2 additional cforce motors while the new EXT mini connector provides a versatile interface for power supply and run/stop control (*plus camera feedback) for cameras including

ARRI, RED SONY, CANON AND BLACKMAGIC.

The cPROcamin is cmotion’s smallest camin yet! It offers an LBUS inter¬face to connect up to 3 cforce motors in daisy-chain and a new EXT mini connector providing power input, run/stop control and camera feedback for popular cameras including ARRI, RED, SONY, CANON and BLACKMAGIC.

Through RED’s open protocol, cPRO can even offer wireless control over internal focus and iris scales on EF lenses for an ultra-lightweight configuration.

Easy-to-use at a low price



compact ONE is the ready-to-use entry level one axis control system from cmotion. Both the camin and the hand controller follow the same design as the regular compact LCS, making it the most ergonomic system in this competitive price range.

The single page menu clearly displayed on the integrated 2.3” screen guarantees an easy plug and play set-up and includes features such as automatic and manual motor calibration, adjustable digital lens limits, motor torque adjustment, direction control and run/stop command.

Each compact ONE set is supplied with either a CLM-4 or CLM-5 motor. With a total on-board weight of less than 600g (with CLM-4 motor), compact ONE is the ideal system for any stabilizing system. Additional run/stop cables are available for ARRI, Blackmagic, Canon, Red and Sony.

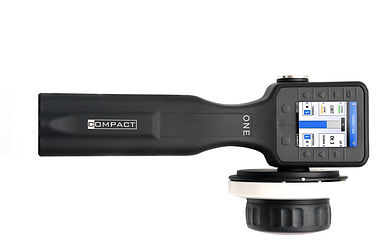

compact ONE hand unit

Constructed using quality materials and available in ergonomic configurations for either right or left handed operators, the compact LCS hand unit breaks the mould with its integrated 2.3” color screen capable of displaying data and menu options even in direct sunlight. Thoughtfully laid out function buttons make navigating the menu settings quick and easy.

compact ONE camin

The compact camin is a small and lightweight wireless box that can be mounted anywhere on or near the camera.
Using just 3 connectors, the compact camin provides an interface for:

·         power

·         control one CLM-4 or CLM-5 motor

universal interface for camera run/stop control for  today's popular cameras

ARRI CLM-motors

The compact ONE is offering highest performance with ARRI`s CLM-motors. Operators have the choice between the small, but fast CLM-5 motor or the higher torque CLM-4 motor, to drive stiffer lenses.
