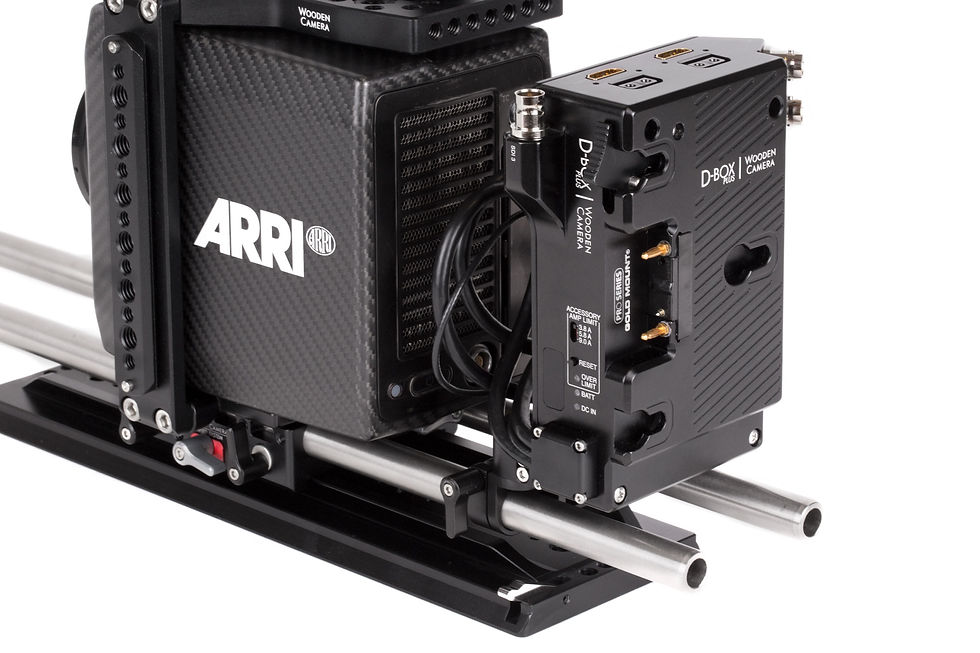

D-Box Plus (ARRI Alexa Mini, V-Mount)


1x V-Mount Power Plate

3x HD-SDI outputs

2x HDMI outputs

2x 3pin Fischer at 24V with Run Stop

- Regulator built in to convert battery voltage to 24V

- Maximum 3A surge, 2.5A sustained shared between connectors

2x 2pin LEMO at 12V unregulated

- ARRI standard wiring

2x D-Tap at 12V unregulated

1x 5V USB

1x EXT port

- Replica of connector on rear of camera

- Maintains functionality of external communication for Starlite monitor, R/S, and power

1x 4pin XLR DC Input

- Hot swappable with on board battery

- Capable of providing power to accessories and camera without brick battery attached


Cables to Camera:

1x 8pin LEMO compatible cable (16 inches)

1x 7pin LEMO compatible cable (16 inches)

1x HD-SDI cable (16 inches)


Weight: 534 grams (1.18 lbs)

Dimensions: 90 x 146 x 43mm (3.5 x 5.7 x 1.7 inches)

Director's Monitor Cage v2


(6) 1/4-20 x 1/2" button head screws

(6) 1/4-20 x 3/8" button head screws

(2) Offset adapters

(4) M3 x 8mm philips screws (for V-Mount plate)

(4) M3 x 12mm philips screws (for Gold Mount plate)

(1) M2.5 x 4mm socket cap screw (for Odyssey 7Q location pin)

(1) Teradek Mounting Bracket

(1) 1/4-20 x 1 1/4" button head screw and 1/4-20 nut (for Teradek Bolt)

(4) #4-40 x 1/2" socket cap screws ( forTeradek receiver)

(4) M3 x 20mm socket cap screws (for Odyssey 7Q)

(1) WC Cable Tie

(1) Sun Shade

(1) Sun Shade (velcro loop for Odyssey)


Weight: 1179.34g (2 lbs 9.6oz)

Dimensions: 279.4 x 177.8 x 101.6 mm (11 x 7 x 4 in)
